OUR PRODUCTS

Lutz-Jesco

Metering Pumps

MAGDOS LA Series

The MAGDOS LA is available in seven sizes for metering applications ranging to 3.96 gph with back pressures up to 232 psig. Double-ball valves ensure accurate, consistent dosing. To adapt the dosing performance, the stroke frequency can be adjusted manually or via an external control contact. You can
thus dose with a flick of the wrist.

Features

  • Capacity range to 3.96 gph, up to 232 psig
  • Power supply 230 VAC +/- 10%, 50/60 Hz, IP 65, max. 25 W or 115 VAC +/-10%, 50/60 Hz, IP 65, max. 25 W
  • Graphical display
  • Materials available: PVC, PP and PVDF
  • Material consistency for the pumps and accessories
  • Dosing head manual venting
  • Wall and floor mounting
  • Double-ball valves ensure accurate dosing
  • Precise pump settings using the keyboard
  • External control via standard signal 0/4 - 20 mA
  • Level input with early warning and main alarm
  • Release input
  • CSA and UL certified

Downloadable Files

MAGDOS LA Series BrochureMAGDOS LA Series Brochure

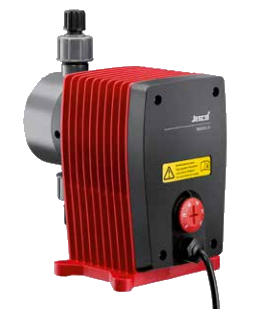

MAGDOS LB Series

The MAGDOS LB is available in seven sizes for metering applications ranging to 3.96 gph with back pressures up to 232 psig. Double-ball valves ensure accurate, consistent dosing. The dosing rate can be adjusted continuously from 0 to 100% by manually changing the stroke frequency.
The pump is externally controlled by switching the
supply voltage of the pump ON and OFF.

Features

  • Capacity range to 3.96 gph, up to 232 psig
  • Wide range power supply unit 110-240 VAC, 50/60 Hz
  • Integrated vented head (standard on plastic version)
  • Wall and floor mounting possible without a bracket
  • Double-ball valves ensure accurate dosing
  • Materials available: PVC (standard), PP, and PVDF
  • Material consistency for pumps and accessories
  • Dosing heads and valves for high-viscosity media are available
  • CSA and UL certified

Downloadable Files

MAGDOS LB Series BrochureMAGDOS LB Series Brochure


MAGDOS LD Series

The MAGDOS LD is available in seven sizes for metering applications ranging to 3.96 gph with back pressures up to 232 psig. Double-ball valves ensure accurate, consistent dosing. To adapt the dosing performance, the stroke frequency can be adjusted manually or via an external control contact. You can
thus dose with a flick of the wrist.

Features

  • Capacity range to 3.96 gph, up to 232 psig
  • Power supply 230 VAC +/- 10%, 50/60 Hz, IP 65, max. 25 W or 115 VAC +/-10%, 50/60 Hz, IP 65, max. 25 W
  • Graphical display
  • Materials available: PVC, PP and PVDF
  • Material consistency for the pumps and accessories
  • Dosing head manual venting
  • Wall and floor mounting
  • Double-ball valves ensure accurate dosing
  • Precise pump settings using the keyboard
  • External control via floating contacts with impulse increase and reduction
  • Level input with early warning and main alarm
  • Release input

Downloadable Files

MAGDOS LD Series BrochureMAGDOS LD Series Brochure

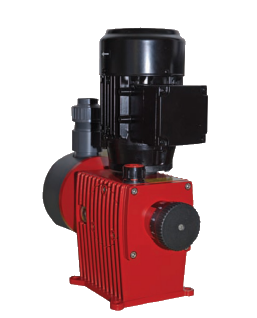

MEMDOS LB Series

Two sizes of the MEMDOS LB series are available. A large coverage in terms of performance and chemical resistance is available, thanks to the variety of dosing heads, combined with a wide range of dosing head materials.
The performance ranges from 0 - 325 gph. The maximum permitted pressure, depending on the size, is between 58 and 232 psig.
Thanks to the sturdy tappet drive with manual or automatic capacity adjustment, the conveyed media such as acids, lyes, coagulants and flocculants are dosed reliably and precisely.
On request, the MEMDOS LB pumps can also be supplied with a double diaphragm system, therefore avoiding uncontrolled leakage of media if the dosing diaphragm wears out.

Features

  • Capacity range 0 to 325 gph, up to 232 psig
  • Minor dependence of the backpressure
  • Infinitely variable stroke frequency from 0 to 100%
  • Tappet drive with manual and automatic capacity adjustment
  • Materials available: PVC, PP, PVDF and stainless steel
  • Compact design, low space requirement
  • Material consistency for the pumps and accessories
  • A variety of three-phase and single-phase motors are available
  • Double-diaphragm system (optional)
  • ATEX versions for Zones 1 and 2 are available
  • Also suitable for variable frequency drive operation

Downloadable Files

MEMDOS Motor Driven Diaphragm Metering Pump BrochureMEMDOS Motor Driven Diaphragm Metering Pump Brochure
