Stenner QuickPro Pump Line

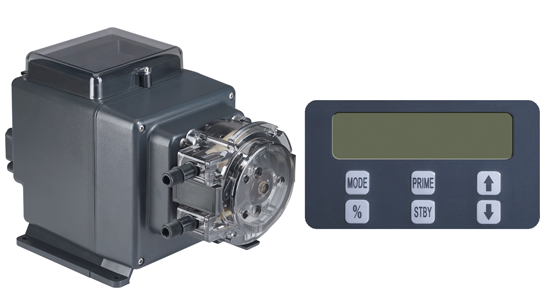

S10P

Peristaltic Pumps

The S10P Series is a peristaltic metering pump activated by a water meter, control valve, flow switch or any control equipment that responds to water flow. The control equipment is wired to the pump input terminals to accept a dry contact or 12-24 VAC/VDC signal. The pump runs at a set time, a set speed or a set flow rate output according to the mode of operation selected.

Features

  • Flashing indicators: Prime, Standby, Signal, Leak, Level, Change, Keypad Locked
  • Time Modes: Pump Run Hours, Tube Run Hours, Tube Change Hours
  • Leak Detect: When a leak is detected, the pump stops and the display flashes LEAK.
  • Level Input: Utilized with a fluid level device in the solution tank. At low level, the dry contact is received on the level input, the pump stops and the display flashes LEVEL
  • Signal Repeater: Dedicated relay replicates dry contact to another pump or device
  • Tube replacement without tools
  • Flow activated
  • Control panel with LCD display
  • NSF/ANSI 61 & 372
  • cULus for indoor/outdoor use
